Rectangular Duct Making Machine

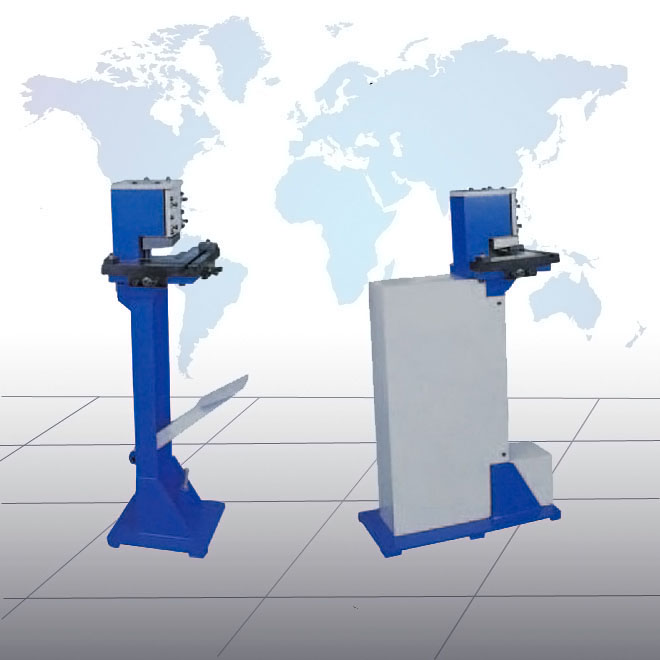

Foot pedal shear angle machine

Model No.： Q11-1*1000
Product Size： 1500*1100*1140
Net Weight： 180KG
Product Power：
Product Material： Galvanized sheet SS

This shearing machine has beautiful appearance and novel structure. It adopts slide rail and the pedal spring uses sliding fixed pivot which will reduce two-thirds operating force. This shearing machine can be quipped with material pressing device. It has the features such as good shearing quality, light weight and easy to movement. It’s widely used in manual shearing baiting of thin sheet metal.

Specifications

Model		Q11-1*1000	Q11-1*1300	Q11-1*2000
Max. Cutting thickness (mm)	Mild steel	0.5-1.0	0.5-1.0	0.5-0.8
Max. Cutting thickness (mm)	Stainless steel	0.6	0.5	0.5
Cutting length (mm)		1000	1300	2000
Dimension (mm)		150011001140	190010001140	224011001140
Weight (kg)		180	260	560
